Lining

The frame "Lining" contains a table with the list of input linings. This frame becomes accessible in the program once the "Tunnel" regime is activated in the frame "Settings". Only editing is allowed in subsequent stages of construction.

To adjust the lining the program launches the module "Lining - FEM". Its function is described in detail in the "Topology" regime in the "Lining" frame. In stages of construction the "Lining - FEM" module contains the "Beams", "Anchors" and "Beam loads" frames.

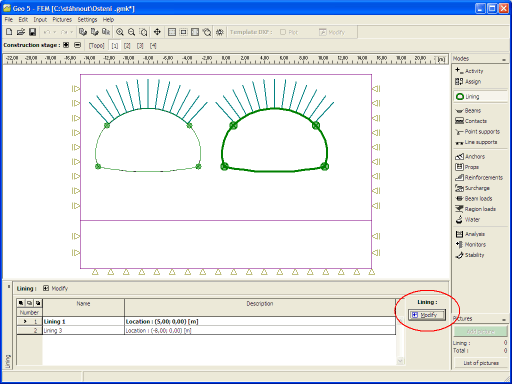

Frame "Lining"
