Assign

The frame "Assign" contains a list of layers of the profile and associated soils. Its functions are similar to the case of assigning soils in the topology regime.

In calculations stages, the active soils are assigned to regions rather than to interfaces. The regions are created automatically when creating the computational model.

Assign of soils can be copied within all 2D GEO5 programs using "GeoClipboard".

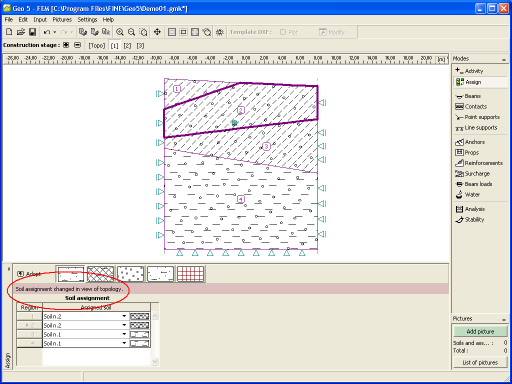

Frame "Assign"
