Beam Loads

The frame "Beam loads" contains a table with the list of loads. Adding beam loads is performed in the "New beam loads" dialog window.

The input loads can also be edited on the desktop with the help of active objects. The program employs the following coordinate systems.

All input parameters of the load can be modified in the stage of construction, in which the load was introduced. In subsequent stages, it is only possible to modify its magnitude (option "Adjust magnitude").

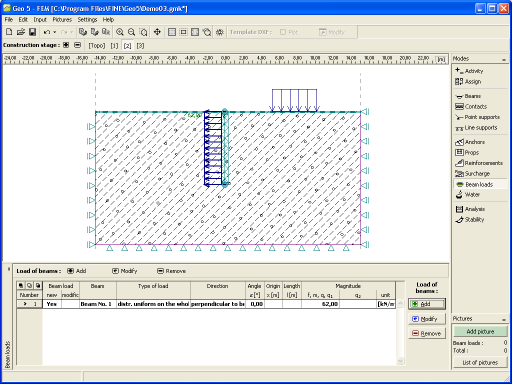

Frame "Beam loads"

Dialog window "New beam loads"
